- Dimensions:
- 1150 x 140 x 650mm (folded)
- 1150 x 1280 x 635mm (set-up)
- 1150 x 1210 x 595mm (internal)

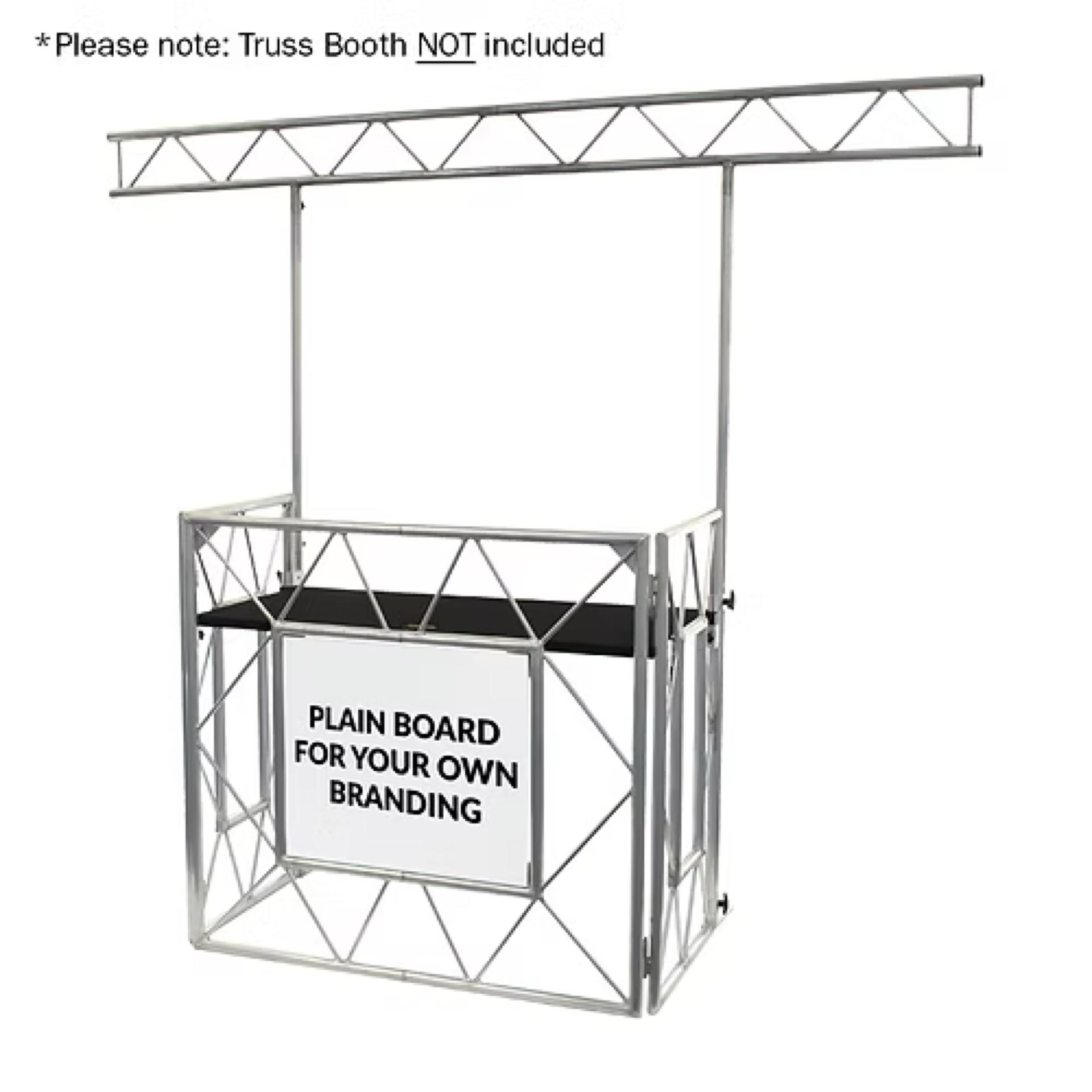

- 562 x 642 x 8mm (front board)
- 246 x 1150 x 8mm (vanity screen)
- Tube diameter: 32mm
- Shelf height: 880mm
- Shelf max. load: 25kg evenly distributed
- Frame weight: 10.9kg
- Shelf weight: 4.6kg
- System weight: 18.5kg

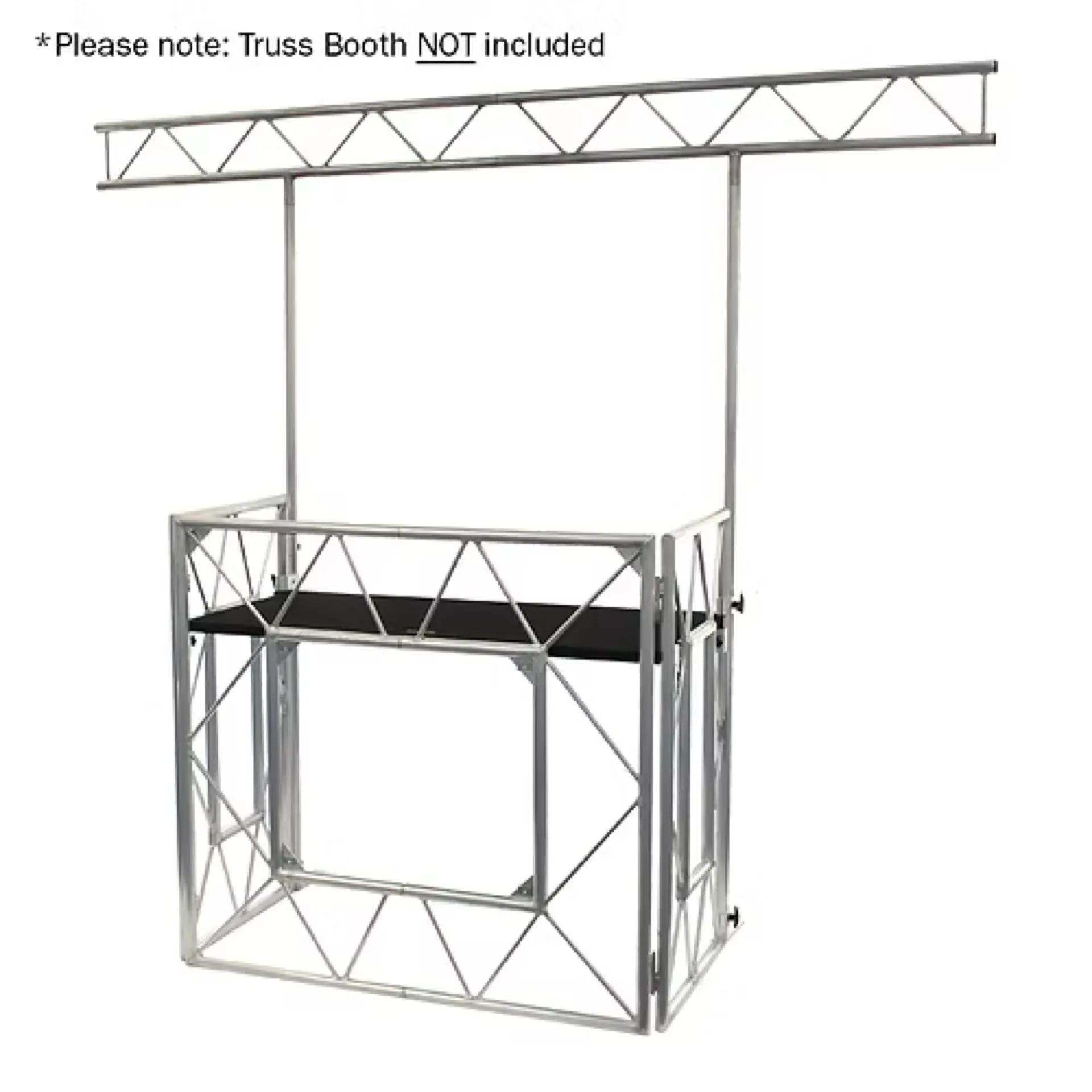

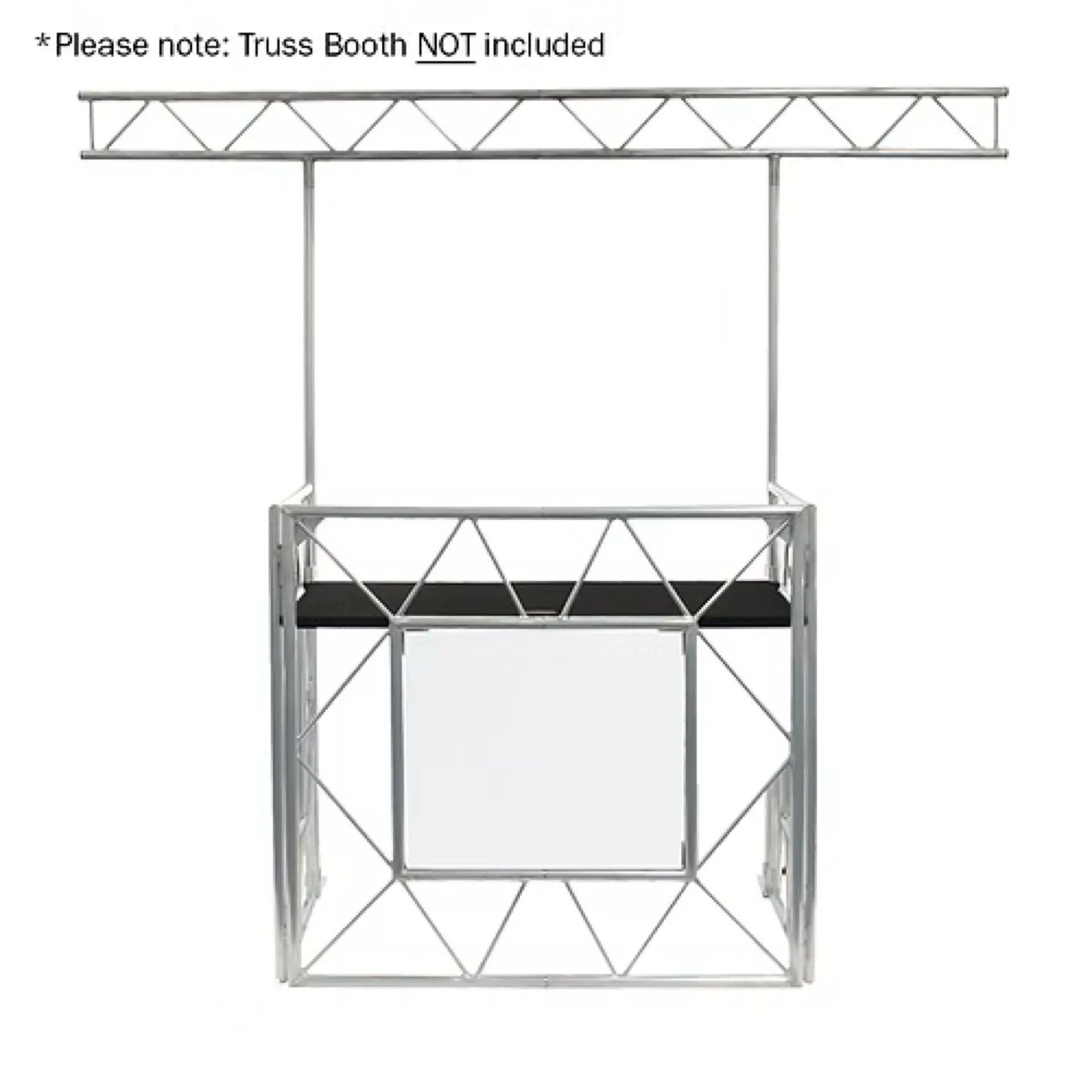

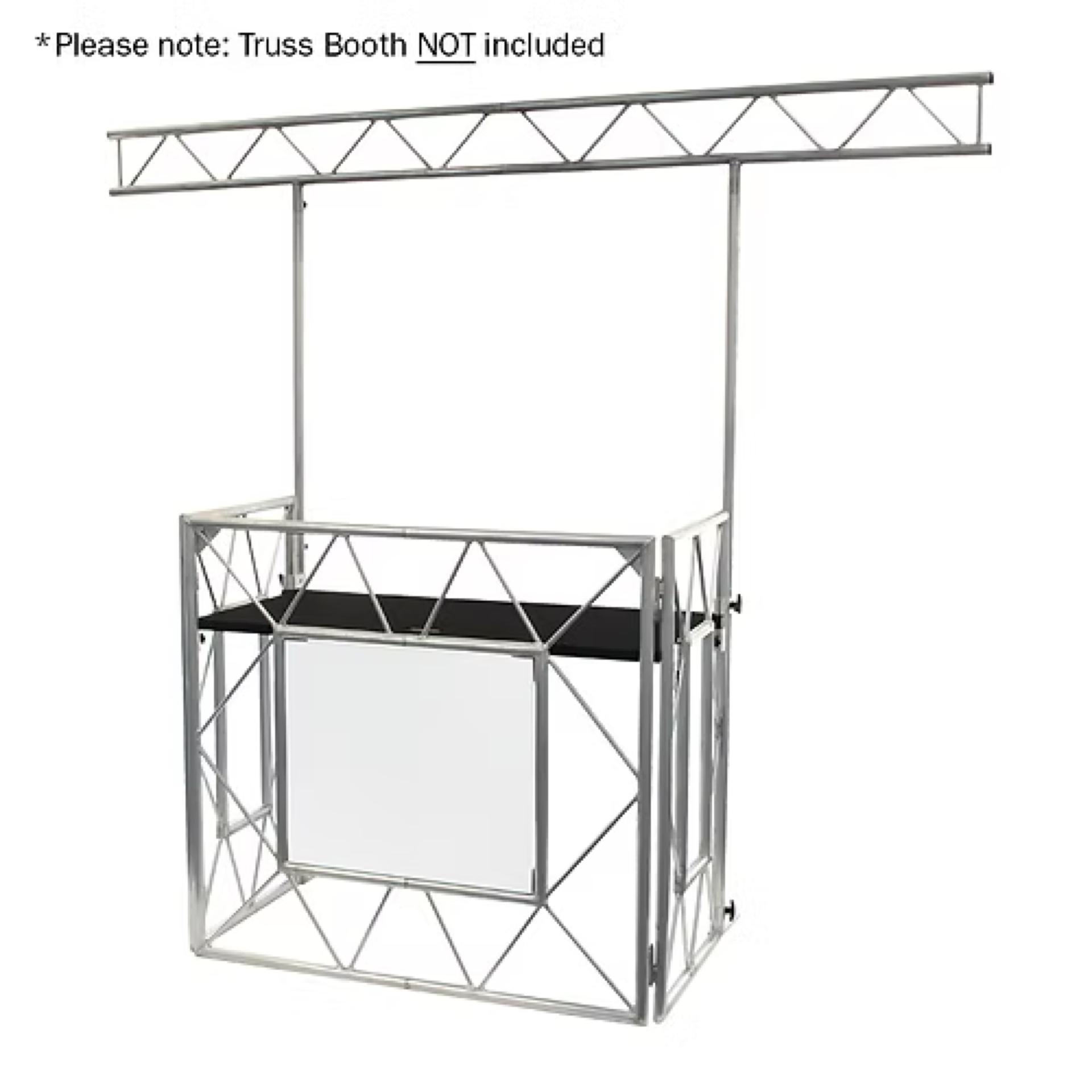

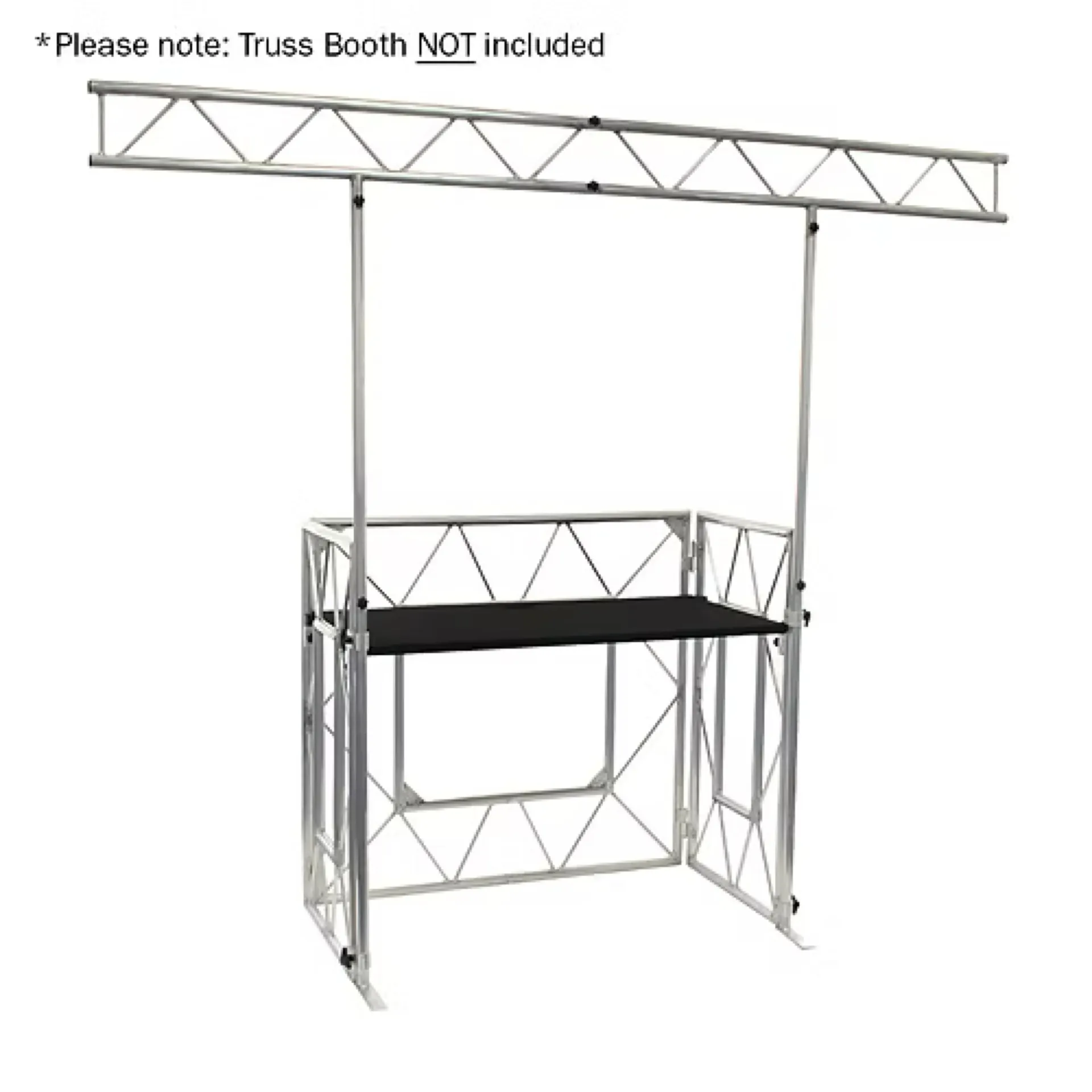

Truss Booth Overhead Kit
Overhead kit for the Equinox Truss Booth
- Dimensions:
- 2215 x 2515 x 70mm (set-up)
- 2215 x 2515 x 710mm (overhead kit fixed to the Truss Booth)
- Overhead Kit max. load: 45kg evenly distributed
- Weight: 7kg
