GRILLE HDMI VS66HDMI

CONDITIONNEMENT: UNITAIRE

Descriptif

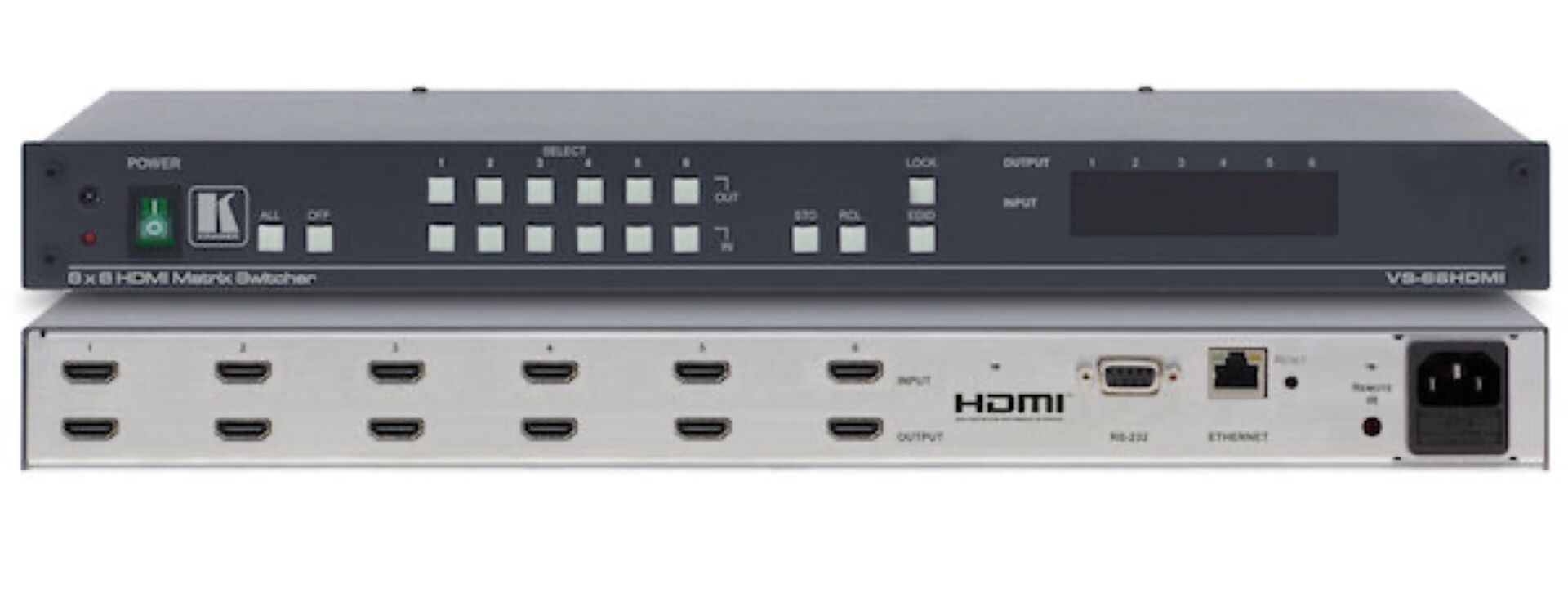

The VS-66HDMI is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

• Max. Data Rate - 1.65Gbps.
• HDTV Compatible.
• HDCP & HDMI 1.1 Compatible.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
• Smart EDID (Extended Display Identification Data) - Dedicated memory for each input captures an EDID setting from a device connected to the output and stores it in non-volatile memory. The user can recall this setting or a factory default EDID.
• Flexible Control Options - Front panel, IR Remote, RS-232 (K-Router™ Windows®-based software is included) & Ethernet.
• Output Disconnect - Each output.
• Front Panel Lockout.
• Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
• Worldwide Power Supply - 100-240V AC.
• Standard 19” Rack Mount Size - 1U. Rack "ears" included.

TECHNICAL SPECIFICATIONS

ENTREE:
SORTIES:
BANDE PASSANTE:

COMPATIBLE AVEC LES STANDARDS: RESOLUTION:

COMMANDES:

INDICATORS:

ALIMENTATION SECTEUR: DIMENSIONS:

POIDS: ACCESSOIRES:

OPTIONS:

6 connecteurs HDMI. 6 connecteurs HDMI.

Accepte jusqu'à 1.65Gbps par voie graphique.

Supportes HDMI 1.1 et HDCP.

Jusqu'au UXGA, 1080p.

Boutons en face avant, télécommande infra-rouge, RS- 232, Ethernet.

6-character display on the front panel.

100-240V AC; 50/60Hz, 32VA.

19" x 7" x 1U Largeur, Profondeur, Hauteur, format rack.

Environ 2.5kg (5.5lbs).

Cordon secteur, Télécommande infra rouge.

Cables Kramer HDMI.
